Grupo
Dispositivos de red
N.º de artículo del fabricante
C1200-24P-4X
Descripción del producto

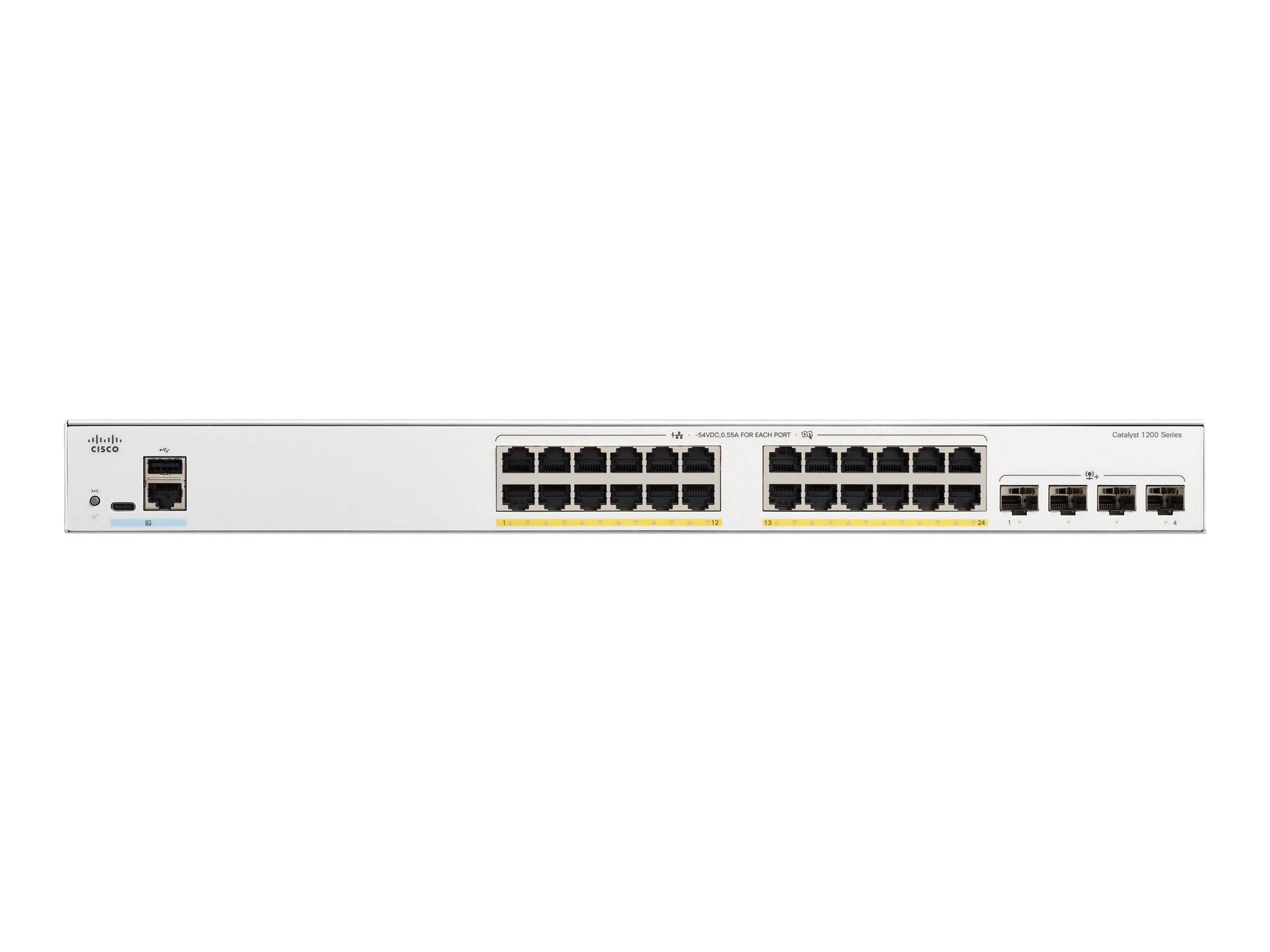

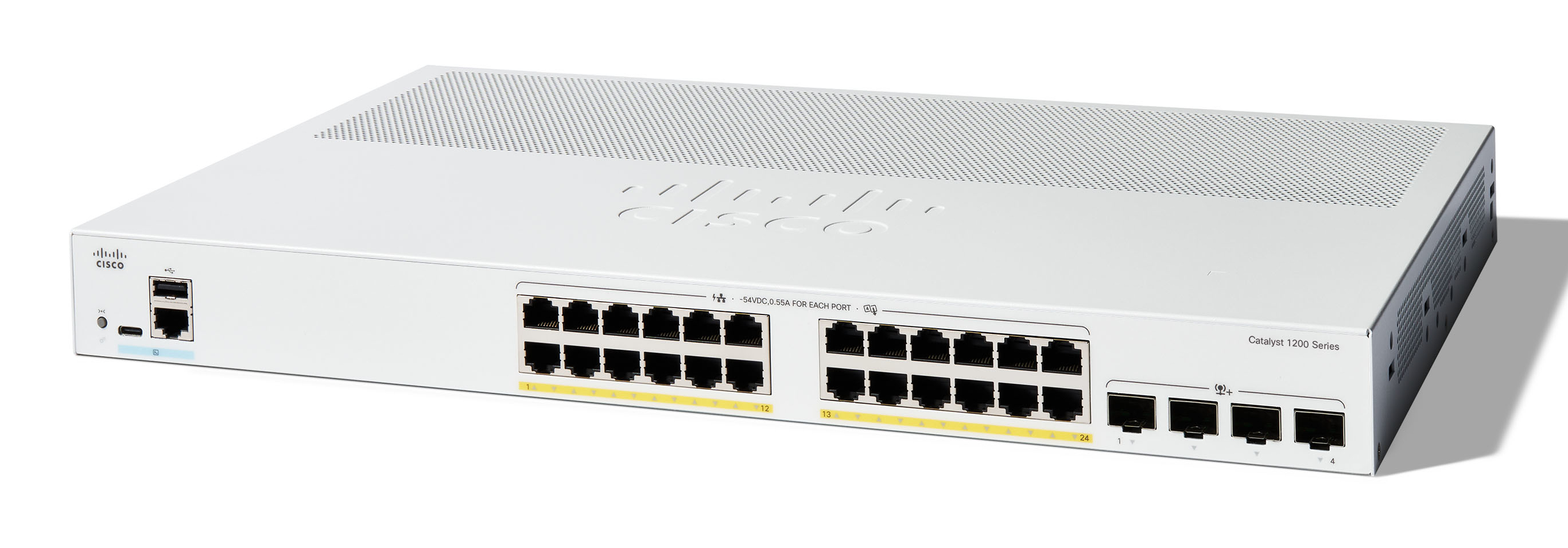

Cisco Catalyst 1200-24P-4X - Switch - 24 Puertos - Smart - an Rack montable
Tipo de dispositivo
Switch - 24 Puertos - L3 - Smart
Tipo de chasis
An Rack montable
Puertos
24 x 10/100/1000 (PoE+) + 4 x 10Gb Ethernet SFP+
Power over Ethernet (PoE)
PoE+
Potencia
Velocidad de reenvío (64-byte Pakete): 95,23 Mpps Capacidad de conmutación: 128 Gbps
Capacidad
MSTP-Instanz: 8 PVST+-Instanzen: 126 RPVST+-Instanzen: 126 Link-Aggregationsgruppen: 4 Link-Aggregation-Ports: 8 Aktive VLANs: 255 IGMP Multicast-Gruppen: 255 IPv4-Rutas (estático): 32 IPv4-Interfaces: 16 Reglas ACL: 512 Colas de prioridad: 8 Gepackte Tamaño del búfer: 1,5 MB
Tamaño de la tabla de direcciones MAC
8.000 Entradas
Compatibilidad con Jumbo Frames
9000 Byte
Protocolo de enrutamiento
STP, estático IP Routing, MSTP, RSTP, IGMP, IGMPv2, IGMPv3, CIDR, MLD, MLDv2, Bounjour
Protocolo de gestión remota
CLI, Telnet, SSH, SSH-2, DHCP, ICMP, SNMP, RADIUS, Syslog, HTTP, HTTPS, SNMP 2c, SNMP 3, RMON, TFTP, SCP
Características de rendimiento
Ohne Ventilador, QoS, Compatibilidad de ACL, Spartaste, EEE, PVST+, Link Aggregation, Portgruppierung, LACP, LAG, Compatibilidad con VLAN, Auto Surveillance VLAN, Guest VLAN, Anschluss-basiertes VLAN, Tag-basierte VLANs, VLAN-Management, Voice VLAN, VSDP, Zero-Touch Deployment, GARP, GVRP, IGMP Snooping, IGMP Abfrager, Detección de bucle, UDP, Compatibilidad con BOOTP, STP Loop-Protección, SCT, SSD, vertrauenswürdige Systeme, Port Security, Broadcast Storm Control, Multicast Storm Control, Storm Control, Unknown Storm Control, Protección contra Ataques DoS, TCP/UDP-Proxy, DSCP based CoS, SP, WRR Queuing, CoS, ToS, DiffServ-Compatibilidad, EQS, Zugangsquotenbegrenzung, TCP Congestion, Compatibilidad con SNTP, TFTP-Compatibilidad, Cliente DHCP, DNS-Klient, SNMP-Trap, Fernzugriffs-Firmware-Upgrade, Cable Diagnostics Function, Servidor DHCP, Duplicación de puertos, SCP, Duplicación de VLAN, Telnet-Client, Kabellängenerkennung, Chip-Protección, Boot Integrity, LLDP, LLDP-MED, CDP, Botón de reinicio, zeitbasierter Port-Betrieb, IPv4 y IPv6 Dual-Stack, Telnet-Server, DAD, path MTU discovery, WRR, Unicast Storm Control, DoS-Protección, HoL Blocking Prevention, Relay DHCP, RPVST+, MSTP Support, Layer 3-Routing
Certificaciones del producto
IEEE 802.1x, IEEE 802.3az, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.3ad (LACP), IEEE 802.1Q, IEEE 802.1p, IEEE 802.1ab (LLDP), IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, IEEE 802.3af, IEEE 802.3at
Alimentación
Corriente alterna 100-240 V (50 - 60 Hz)
Dimensiones (ancho x profundidad x alto)
44.5 cm x 29.9 cm x 4.4 cm
Método de autenticación
RADIUS
Procesador
X ARM: 1.4 GHz
Indicador de estado
System, Link/Actividad/Velocidad, PoE
Interfaces
24 x 10/100/1000 Base-T (PoE+) RJ-45 4 x 10GBase-X SFP+ 1 x Consola RJ-45 1 x USB-C Consola
Fuente de alimentación
Fuente de alimentación interno
Tensión de red requerida
Corriente alterna 100-240 V (50 - 60 Hz)
Accesorios incluidos
Pointer-Karte, Montagekit
Servicio y soporte
Limitada Garantía - Vida útil - Tiempo de respuesta: am siguiente Día laborable Técnico Support - Consulting - 1 Año
Temperatura de funcionamiento mín.
-5 °C
Temperatura de funcionamiento máx.
50 °C
Humedad admisible en funcionamiento
10 - 90% RH (non-condensing)
Temperatura de almacenamiento mín.
-25 °C
Temperatura de almacenamiento máx.
70 °C
Humedad admisible en almacenamiento
10 - 90% RH (non-condensing)
